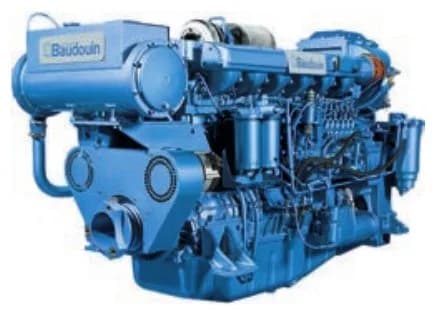

Baudouin 6W126M marine propulsion engine

Marine diesel propulsion engine with 6 in-line cylinders and 11.6 L displacement, rated from 294 to 331 kW (400–450 hp). Approx. weight 1,200 kg; complies with IMO II, CCNR II and EU 97/68 IIIA.

Brand: Baudouin
Category: Marine engines & generator sets
Type: Marine diesel propulsion engine
Cylinders: 6 in line

Selected brands and suppliers
Fast reply on WhatsApp
Supply for businesses

Marine diesel propulsion engine

Cylinders

6 in line

Bore x stroke

126 x 150 mm

Displacement

11.60 L

About the product

The Baudouin 6W126M is a marine diesel propulsion engine with 6 in-line cylinders and 11.60 L displacement, featuring mechanical injection.

Baudouin

Baudouin 6W126M marine propulsion engine

It delivers from 294 to 331 kW (400–450 hp) depending on the duty class, and is designed specifically for marine use by Moteurs Baudouin, the French manufacturer that has served the marine sector since 1918.

Available ratings by duty class (ISO 3046/1 standard): - P1: 294 kW / 400 hp at 1,800 rpm (approx. 70 l/h) - P2: 331 kW / 450 hp at 2,100 rpm (approx. 83 l/h)

Key advantages highlighted by the manufacturer: best-in-class fuel consumption; a reference for towing and pushing applications; easy maintenance with simple mechanical injection and individual cylinder heads.
