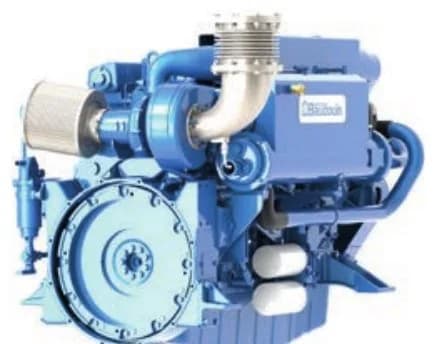

Baudouin 6M19.3 marine propulsion engine

Marine diesel propulsion engine with 6 in-line cylinders and 11.6 L displacement, rated from 331 to 425 kW (450–578 hp), P1 to P4 ratings. Electronic common-rail injection; approx. weight 1,200 kg.

Brand: Baudouin
Category: Marine engines & generator sets
Type: Marine diesel propulsion engine
Cylinders: 6 in line

Selected brands and suppliers
Fast reply on WhatsApp
Supply for businesses

Marine diesel propulsion engine

Cylinders

6 in line

Bore x stroke

126 x 155 mm

Displacement

11.60 L

About the product

The Baudouin 6M19.3 is a marine diesel propulsion engine with 6 in-line cylinders and 11.60 L displacement, featuring electronic common-rail injection.

Baudouin

Baudouin 6M19.3 marine propulsion engine

It delivers from 331 to 425 kW (450–578 hp) depending on the duty class, and is designed specifically for marine use by Moteurs Baudouin, the French manufacturer that has served the marine sector since 1918.

Available ratings by duty class (ISO 3046/1 standard): - P1: 331 kW / 450 hp at 1,800 rpm (approx. 78 l/h) - P2: 368 kW / 500 hp at 2,100 rpm (approx. 90 l/h) - P3: 404 kW / 550 hp at 2,100 rpm (approx. 101 l/h) - P4: 425 kW / 578 hp at 2,200 rpm (approx. 110 l/h)

Key advantages highlighted by the manufacturer: common-rail injection; best-in-class fuel consumption; compact design for easy integration; peak propulsion torque at 1,400 rpm.
