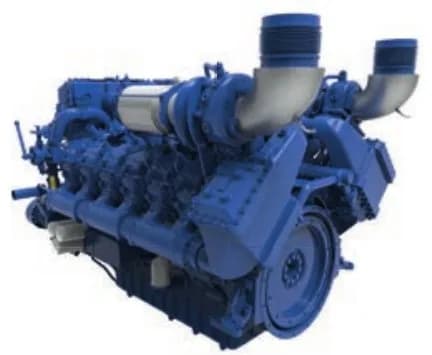

Baudouin 12M33.2 marine propulsion engine

Marine diesel propulsion engine with 12-cylinder 90° V and 39.2 L displacement, rated from 956 to 1,104 kW (1,300–1,500 hp) at 1,800 rpm. Approx. weight 3,900 kg; the largest-displacement propulsion engine in the range.

Brand: Baudouin
Category: Marine engines & generator sets
Type: Marine diesel propulsion engine
Cylinders: 12 in V at 90°

Selected brands and suppliers
Fast reply on WhatsApp
Supply for businesses

Marine diesel propulsion engine

Cylinders

12 in V at 90°

Bore x stroke

150 x 185 mm

Displacement

39.2 L

About the product

The Baudouin 12M33.2 is a marine diesel propulsion engine with 12 cylinders in a 90° V and 39.2 L displacement, featuring mechanical injection.

Baudouin

Baudouin 12M33.2 marine propulsion engine

It delivers from 956 to 1,104 kW (1300–1,500 hp) depending on the duty class, and is designed specifically for marine use by Moteurs Baudouin, the French manufacturer that has served the marine sector since 1918.

Available ratings by duty class (ISO 3046/1 standard): - P1: 956 kW / 1,300 hp at 1,800 rpm (approx. 244 l/h) - P2: 1,029 kW / 1,400 hp at 1,800 rpm (approx. 266 l/h) - P2: 1,104 kW / 1,500 hp at 1,800 rpm (approx. 288 l/h)

Key advantages highlighted by the manufacturer: simple mechanical injection; best-in-class fuel consumption; best-in-class low-speed torque.
