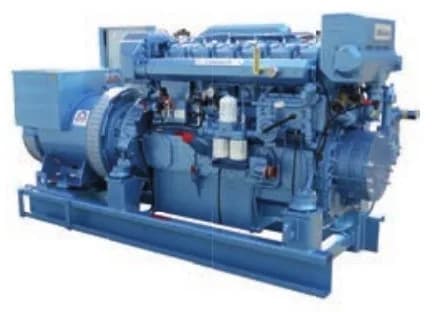

Baudouin 6M26.2 marine generator set

Marine generator set powered by a 6-cylinder in-line 6M26.2 engine (15.9 L), delivering 416 kWe (520 kVA) at 50 Hz and 436 kWe at 60 Hz. Prime power (PRP) duty, IMO II certified.

Brand: Baudouin
Category: Marine engines & generator sets
Type: Marine diesel generator set
Engine: Baudouin 6M26.2, 6 in-line cylinders

Selected brands and suppliers
Fast reply on WhatsApp
Supply for businesses

Marine diesel generator set

Engine

Baudouin 6M26.2, 6 in-line cylinders

Bore x stroke

150 x 150 mm

Displacement

15.90 L

About the product

Baudouin marine generator set built around the 6M26.2 diesel engine with 6 in-line cylinders (15.90 L) and mechanical injection.

Baudouin

Baudouin 6M26.2 marine generator set

It delivers from 416 to 436 kWe (520–545 kVA) at 50/60 Hz, designed to supply on-board power in the harshest marine conditions.

Available configurations: - 6M26.2 PRP, 50 Hz: 520 kVA / 416 kWe at 1,500 rpm (approx. 80 l/h) - 6M26.2 PRP, 60 Hz: 545 kVA / 436 kWe at 1,800 rpm (approx. 87 l/h)

Baudouin marine gensets stand out for easy-to-maintain injection systems, reliability in extreme conditions, best-in-class fuel consumption and high-efficiency alternators. PRP means prime power with unlimited running time (full load ≤ 500 h/year, 10% overload 1 h in every 12 h).

Technical data
