Marine engines & generator setsBaudouin

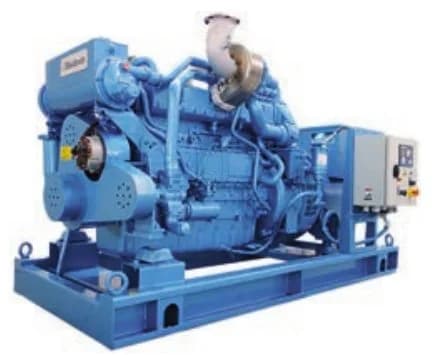

Baudouin 6M16 marine generator set

Marine generator set powered by a 6-cylinder in-line 6M16 engine (9.7 L), delivering 192 kWe (240 kVA) at 50 Hz and 208 kWe (260 kVA) at 60 Hz. Prime power (PRP) duty, IMO II certified.

Brand: Baudouin
Category: Marine engines & generator sets
Type: Marine diesel generator set
Engine: Baudouin 6M16, 6 in-line cylinders

Selected brands and suppliers
Fast reply on WhatsApp
Supply for businesses

Marine diesel generator set

Engine

Baudouin 6M16, 6 in-line cylinders

Bore x stroke

126 x 130 mm

Displacement

9.70 L

About the product

Baudouin marine generator set built around the 6M16 diesel engine with 6 in-line cylinders (9.70 L) and mechanical injection.

Baudouin

Baudouin 6M16 marine generator set

It delivers from 192 to 208 kWe (240–260 kVA) at 50/60 Hz, designed to supply on-board power in the harshest marine conditions.

Available configurations: - 6M16 PRP, 50 Hz: 240 kVA / 192 kWe at 1,500 rpm (approx. 49 l/h) - 6M16 PRP, 60 Hz: 260 kVA / 208 kWe at 1,800 rpm (approx. 56 l/h)

Baudouin marine gensets stand out for easy-to-maintain injection systems, reliability in extreme conditions, best-in-class fuel consumption and high-efficiency alternators. PRP means prime power with unlimited running time (full load ≤ 500 h/year, 10% overload 1 h in every 12 h).

Technical data
